ball nose end mill

You are here :Home > Product > ball nose end mill

Products

QQ图片20221106133054
QQ图片20221106133059
QQ图片20221106133113
QQ图片20221106133143
QQ图片20221106133153
QQ图片20221106133204
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill
2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill

2 Flutes 4 Flutes Radius End Milling Cutter Carbide Milling Tool Ball Nose End Mill


Inquiry
Description
High Quality Carbide Rod
All cutting materials are from international famous brands,high hardness,long tool life.
HRC
Grade
Helix Angle（°）
Co Content（%）
Grain Size（um）
Bending Strength（N/mm²）
HRC45
YG10X
35
10
0.8
3520
HRC55
YG10.2＆WF25（Taiwan）
35
12
0.6
4000
HRC65
K44＆K40（German）
45
9
0.4
4300
HRC70
H10F（Sweden）
45
9
0.2
4600

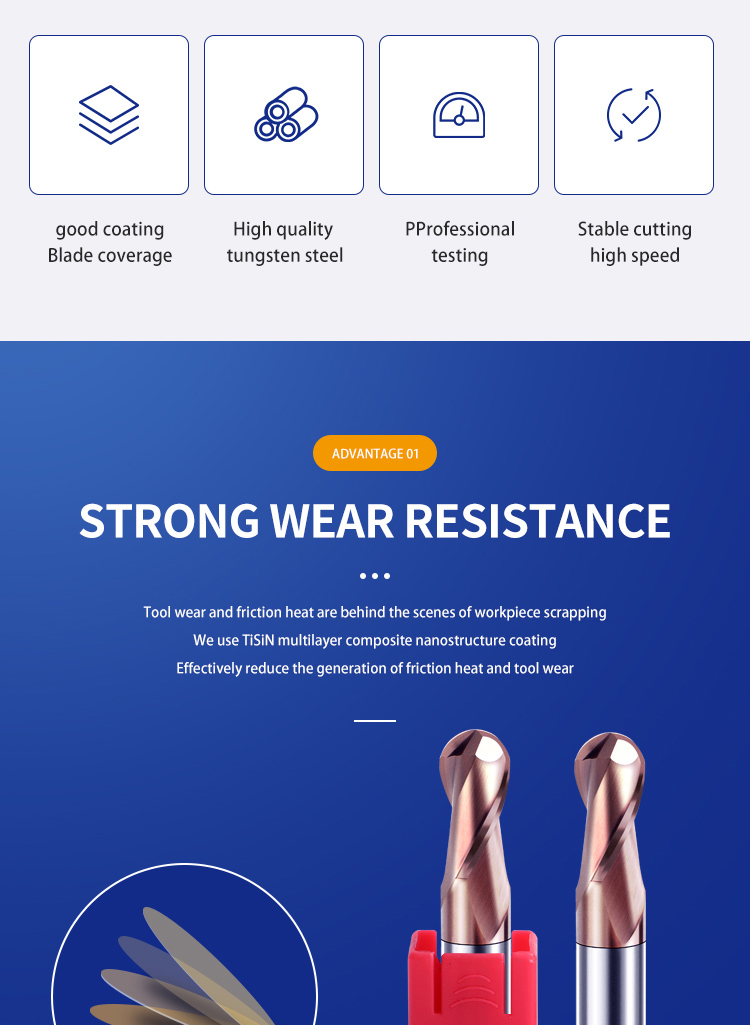

Excellent Coating
Good coating can improve tools life and production effiency，and we provide professional suggestions according to your cutting requirements.
Coating
Hardness(HV)
Thickness(UM)
Friction Coefficient
Oxidation Temp(°）
Color
AlTiN
3500
2.5-3
0.3
900
Black
TiAlN
2800
2.5-3
0.3
900
Violet
TiSiN
3600
3
0.45
1000
Copper
AlTiSiN
400
3
0.4
1200
Blue
TiN
2500
2-3
0.5
600
Gold

Product Description

Solid Carbide Milling Cutter CNC End Mill Cutting Tools

Carbide end mill cutters advantage:
1. 100% Virgin raw material
2. With production experience over 10 years
3. Advanced production equipment
4. The cutter is a tool equipment with a stronger hardness and longer-life to use which is widely used in the line of machinery like the CNC lathe,has a quite strong hardness to work and it can speed the application of machinery and enhance the efficiency.
Specification
It can be divided into 3 categories, normal end mill, ball end cutter, ball nose end mill cutters.
Cutting D (mm)
Shank D(mm)
Overal length (mm)
Flute
Flute
Flute
Angle
Angle
Angle
1.0
1.0
50
2
3
4
55°
60°
65°
1.5
1.5
50
2
3
4
55°
60°
65°
2.0
2.0
50
2
3
4
55°
60°
65°
2.5
2.5
50
2
3
4
55°
60°
65°
3.0
3.0
50
2
3
4
55°
60°
65°
3.5
3.5
50
2
3
4
55°
60°
65°
4
4
50
2
3
4
55°
60°
65°
5
5
50
2
3
4
55°
60°
65°
6
6
50
2
3
4
55°
60°
65°
8
8
60
2
3
4
55°
60°
65°
10
10
75
2
3
4
55°
60°
65°
12
12
75
2
3
4
55°
60°
65°
14
14
100
2
3
4
55°
60°
65°
16
16
100
2
3
4
55°
60°
65°
18
18
100
2
3
4
55°
60°
65°
20
20
100
2
3
4
55°
60°
65


Major Products:
 10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting ToolApplication:

1. Suitable for processing stainless steel, cast iron, copper,carbon steel etc.

2. Best material: we use the import material, hrc45 is YG10X,HRC55 is YL10.2,HRC63 is japan carbide rods

3. Quality:all our manufactured parts are inspected by advanced mearsurement.

4. Facility:we have the world 5-axis tools grinding machines.

5. Flexbility:non-standard sizes are accepted.

6. We can supply for you with different types and from the low price to high quality
10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool

Factory Show:
Zhuzhou OBT Carbide Tools Co., ltd

We are professional producers for solid carbide end mills and carbide drillm sell inserts.

Main Products:
Solid carbide milling cutters, drills , reamers, carbide inserts, spiral end mill, welding tools, indexable cutting tools, machines centers cutting tools and other type CNC machining fields. And are able to do the desigh and manufacturer of non-standard tools.

The material and equipment:
Using high-quality domestic and imported bar, using the German advanced frist-class manufacturing facilities, to meet the various needs of customers, high quality materials, sophisticated equipment, creating a frist-class products, sincerely welcome new and old customers to contact us to discuss the order.

We Promise:
In order to improve productivity, and reduce production costs, resolve user's cutting problem, meet the processing quality of user. Quality firdt, Reputation first, Prompt delivery is our aim, and dedication to manufacturering industries!

Large Factory :
10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool
ANCA Machine:
10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool
Quality Inspection Equipment:
10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool

Certifications

Certifications & Exhibition:

10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool
10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool

Our Service & Positive Feedback:

We also accept client's requirement of non-standard size

Different Hardness based on client's requirement

Sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.

Talented and well-trained employees.

If you want to know more about our products, you can contact us on line.


10% Discount Hot Sale HRC45 HRC55 HRC63 Carbide End Mill Tungsten Milling Cutter Cutting Tool
Shipping & Payment Term:

MOQMOQ 10PCS each size
Payment30% payment before produce, 70% balance payment before delivery
Delivery TimeSample order 3~5 days, large order 7~15 days
Payment WayPaypal/ TT/ western union/ alibaba trade insurance/ hongkong bank/ RMB
Shipping WayDHL/ UPS/ EMS/ FEDEX/ TNT/ AIR CARGO

Contact us:

Specifications
High Quality Carbide Rod
All cutting materials are from international famous brands,high hardness,long tool life.
HRC
Grade
Helix Angle（°）
Co Content（%）
Grain Size（um）
Bending Strength（N/mm²）
HRC45
YG10X
35
10
0.8
3520
HRC55
YG10.2＆WF25（Taiwan）
35
12
0.6
4000
HRC65
K44＆K40（German）
45
9
0.4
4300
HRC70
H10F（Sweden）
45
9
0.2
4600
Excellent Coating
Good coating can improve tools life and production effiency，and we provide professional suggestions according to your cutting requirements.
Coating
Hardness(HV)
Thickness(UM)
Friction Coefficient
Oxidation Temp(°）
Color
AlTiN
3500
2.5-3
0.3
900
Black
TiAlN
2800
2.5-3
0.3
900
Violet
TiSiN
3600
3
0.45
1000
Copper
AlTiSiN
400
3
0.4
1200
Blue
TiN
2500
2-3
0.5
600
Gold


FAQ

FAQ:

Q: How can I pay?
A: we accept paypal as the sample. if large amount need pay by western union or TT
Q:Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
Q:Whats your MOQ?
A:we welcome your sample order to test our quality, we believe that u will find that we are the right supplier u are looking
for.so no MOQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Is zhuzhou obt carbide tools co.,ltd company or factory:
A: We are carbide tools professional factory more than 10 years. we are located in zhuzhou. the best tungsten carbide tools
manufacture are in China
