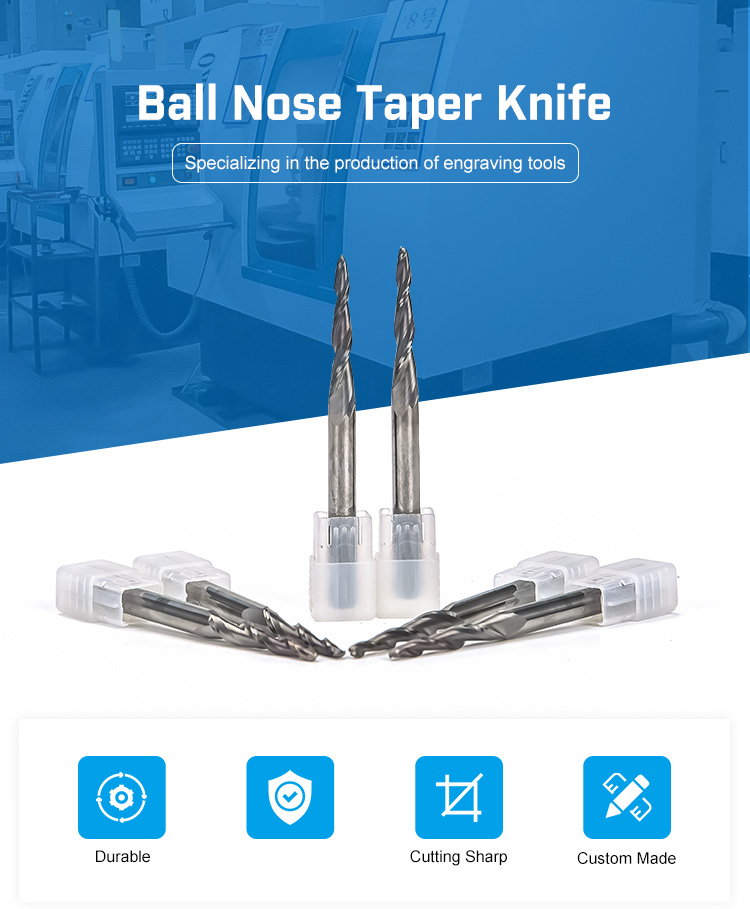

Tungsten Solid Carbide Tapered Ball Nose End Mills CNC Engraving Bits Carbide Taper End Mill Ball Nose CNC Milling Cutter For Wood Router Bits
Description
Product Parameters
| HRC | HRC45/55/60/65 |
| Coating Type | ALTIN /TIALN /TISIN /NACO /DLC /Diamond |
| OEM | √ |
| Suitable For | All Kinds Matel Plastic Wood Acrylic and so on |
Super Raw Material
| Item | HRC50 | HRC55 | HRC60 | HRC65 |
| Grade | YG10X | YL10.2 & WF25 | Germany K44 &K40 | Sandvik H10F |
| Details | Grain size 0.7um, Co10%, Flexural strength 3320N/mm2 | Grain size 0.6um, Co10%, Flexural strength 4000N/mm2 | Grain size 0.5um, Co12%, Flexural strength 4300N/mm2 | Grain size 0.5um, Co10%, Flexural strength 4300N/mm2 |
Super Coating
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
| Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Color | Black | Dark Purple | Copper | Blue | |
| Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision Cutting | |
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | |||
Most suitable for carbide cutting tools, turning insert | |||||
Products Description

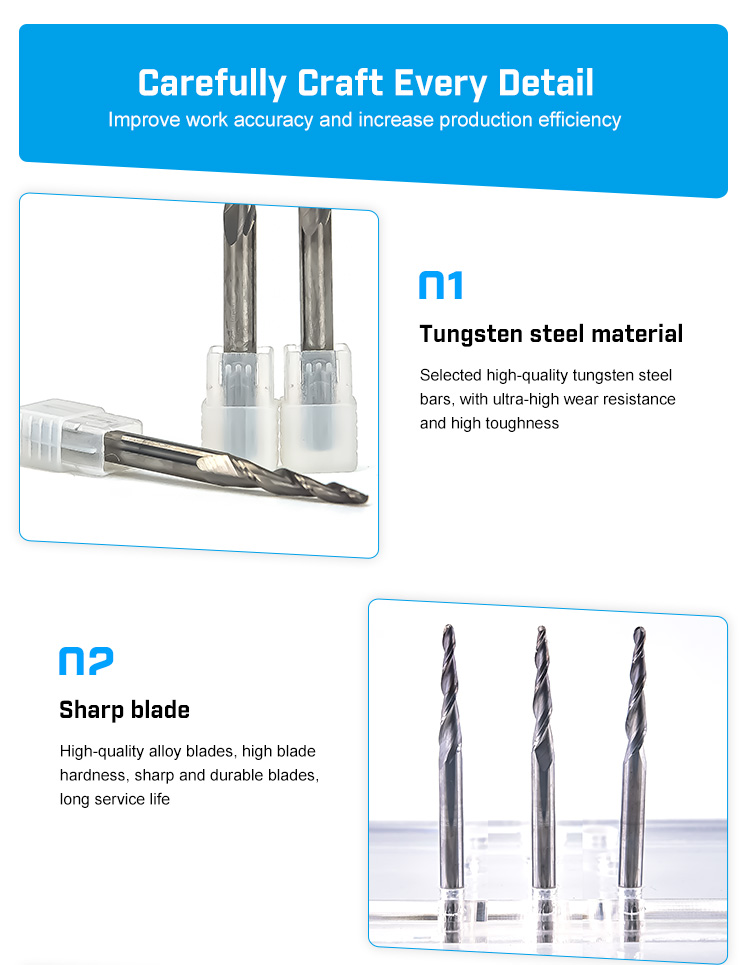

1.Industrial Quality
Made of premium carbide according to strict industrial grade quality standards with high wear resistance and has long service life to ensure best performance
2.TiAIN Coating offers high resistance to heat and oxidation and allows faster cutting speeds,increase longer service life
3.Sharp edge ensure good cutting effect,clean surface,no burr for excellent cutting finishing

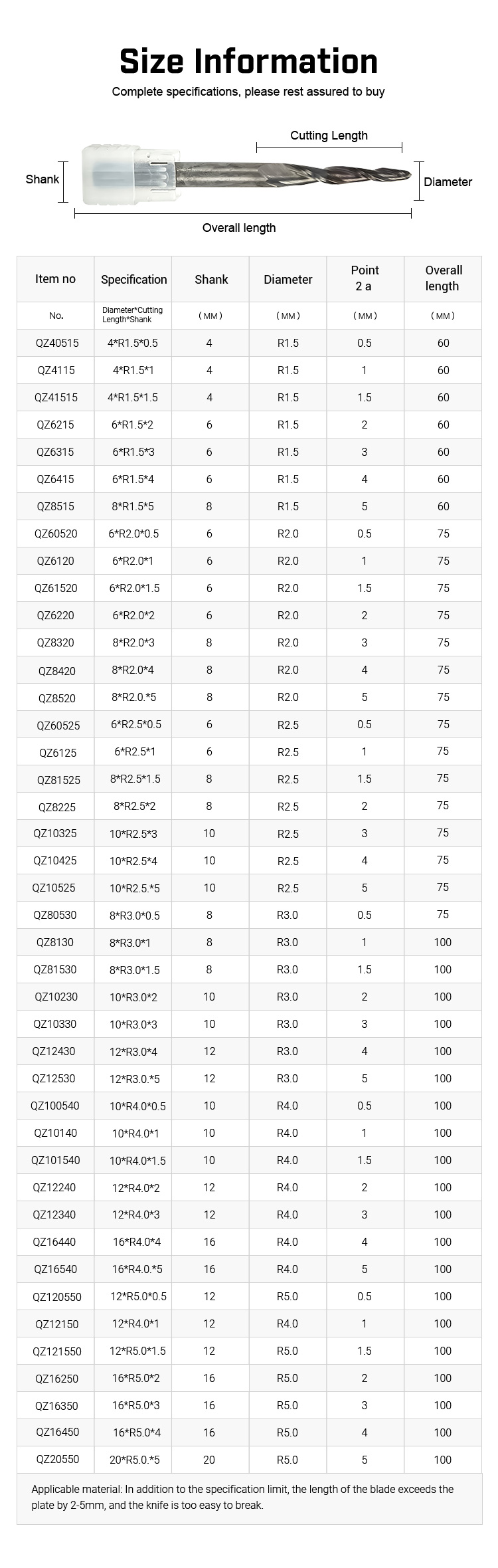

Specification:
Type: 2 Flutes Tapered Ball Nose End Mill
Material: Tungsten Carbide Alloy
Coated: TiAIN Coating
Flutes: 2 Flutes
Shank Diameter: 3.175(1/8") 4mm 6mm
Radius: R0.25/r0.5/R0.75/R1.0/R1.5/R2.0
Cutting Length : 15mm 20mm 20.5mm 30.5mm
Overlength : 38mm/50mm/75mm
Note:
Please allow 1-3mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Including:
1pc 2 Flutes Tapered Ball Nose End Mill
Specifications
Major Products:
Application:
1.Suitable for processing stainless steel, cast iron, copper,carbon steel etc.
2.Best material: we use the import material, hrc45 is YG10X,HRC55 is YL10.2,HRC63 is japan carbide rods
3.Quality:all our manufactured parts are inspected by advanced mearsurement.
4.Facility:we have the world 5-axis tools grinding machines.
5.Flexbility:non-standard sizes are accepted.
6.We can supply for you with different types and from the low price to high quality
Factory Show:
Zhuzhou OBT Carbide Tools Co., ltd
We are professional producers for solid carbide end mills and carbide drillm sell inserts.
Main Products:
Solid carbide milling cutters, drills , reamers, carbide inserts, spiral end mill, welding tools, indexable cutting tools, machines centers cutting tools and other type CNC machining fields. And are able to do the desigh and manufacturer of non-standard tools.
The material and equipment:
Using high-quality domestic and imported bar, using the German advanced frist-class manufacturing facilities, to meet the various needs of customers, high quality materials, sophisticated equipment, creating a frist-class products, sincerely welcome new and old customers to contact us to discuss the order.
We Promise:
In order to improve productivity, and reduce production costs, resolve user's cutting problem, meet the processing quality of user. Quality firdt, Reputation first, Prompt delivery is our aim, and dedication to manufacturering industries!
Large Factory :
ANCA Machine:
Quality Inspection Equipment:
Certifications & Exhibition:
Our Service & Positive Feedback:

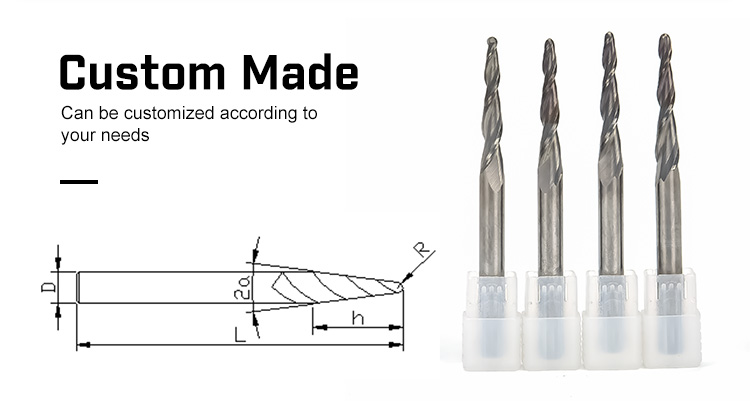

We also accept client's requirement of non-standard size
Different Hardness based on client's requirement
Sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.
Talented and well-trained employees.
If you want to know more about our products, you can contact us on line.
Shipping & Payment Term:
| MOQ | MOQ 10PCS each size |
| Payment | 30% payment before produce, 70% balance payment before delivery |
| Delivery Time | Sample order 3~5 days, large order 7~15 days |
| Payment Way | Paypal/ TT/ western union/ alibaba trade insurance/ hongkong bank/ RMB |
| Shipping Way | DHL/ UPS/ EMS/ FEDEX/ TNT/ AIR CARGO |
FAQ
FAQ:
Q: How can I pay?
A: we accept paypal as the sample. if large amount need pay by western union or TT
Q:Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
Q:Whats your MOQ?
A:we welcome your sample order to test our quality, we believe that u will find that we are the right supplier u are looking
for.so no MOQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Is zhuzhou obt carbide tools co.,ltd company or factory:
A: We are carbide tools professional factory more than 10 years. we are located in zhuzhou. the best tungsten carbide tools
manufacture are in China
